Home » Products » Theater Chairs » Adjustable Theater Chair

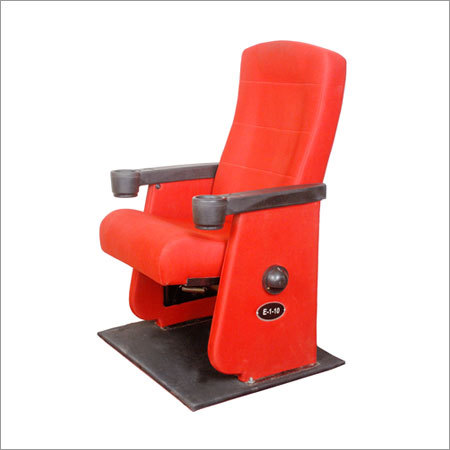

Adjustable Theater Chair

Adjustable Theater Chair
Adjustable Theater Chair
Product Code : 22
Product Description

Adjustable Theater Chair

We are considered to be one of the most profound and prominent manufacturers of Adjustable Theater Seat. Our offered range is available at nominal prices in the market. These seats are widely used in theaters, conference rooms and luxury buses. Our offered range of theater seats is known for its features such as smooth finish, durability and long life. Adjustable Theater Seat can be availed in variety of styles, designs and sizes at industry leading prices.

Further Details:

We are engaged in offering a wide range of Theater Seat with the following specification :

  • Sheet metal frame:-

    • Foot is made of CR Deep Draw sheet of the size 330-851.66mm with hole distance of 255mm between two fasteners.

      • This foot is made of single piece of C.R. Sheet with deep drawing dies. The foot pipe is of dimension 38mm-783mm.

    • The back frame & base frame are made of C.R. pipe of the size ( 19x 2mm)T.H of ERW tube IS : 30748 1976 grade I. These frames are embedded (not pasted) to P.U. Foam. In precise frames are inbuilt in foam.

    • The back & base frame supports Zigzag spring for swinging comfort.

  • P.U foam:- Polyurethane foam used is close cell formation, high pressure with CFC free quality.

    • Density = 50+ 5kg/m3 jisk 6401

    • Hardness = Cusion = 120 (+30/-20) Newton,Backrest = 80 (+30/-10) Newton

    • Constant Compression Set(max :- -13%) jisk 6401)

  • P.U foam measurement:

    • Base Cushion: LTH = 465x475x130 (in mm)

    • Backrest: LTH = 690x450x100 (in mm)

    • The foam must have a depth of 45mm at shoulder area and depth gradually decreases to 15mm at bottom.

    • P.U foam happens to be the most critical part of the chair, hence it is very important to maintain density, hardness & overall quality of the foam.

    • Powder Coating:- The frame is well powder coated with prior 7 tank

    • Phosphating treatment & 70 to 80 microns of powder coating.

    • Cloth :- Fire retardant cloth with 3mm high density lamination (cost Rs. 200p/mt) The cloth is well pasted with P.U. Foam.

    • Plastic Cover: - Back foam is covered by special plastic cover made of P.P.C.P material (poly propylene co-polymer).

    • This 5mm thick P.P.C.P plastic back cover adds to elegance & provides protection from mishandling .

    • Row numbers & Asile light :- Row no. are well placed on P.P.C.P. cover of base. The side panel should support row no. & asile lights for illumination.

    • P.U. Handle:- Handles are of P.U. (integral foam) without cup holders. V.I.P. Chairs / Front rows can have special aluminum pressure die casted handle with P.U. Saddles and cup holders. The aluminum handle are well powder coated and colour of the handle should match to the fabric of the chair as decided by architect.

    • Moving mechanism ;- This chair has synchronous movement of back & base. The mechanism is popularly called scissor mechanism. The sliding movement can be achieved as desired by the customer and space available. (4" to 6"). The base can be manually tip-up.

Other measurement of the chair :-

  • Height of the chair = 1040 mm

  • Width of the chair = 560 mm

  • Length of the chair = 660 mm

  • Height of the handles = 600 mm

  • Length of the handle = 470 mm

  • Width of the handle = 75 mm

  • Sliding movement = 115 mm

Warranty: - Three years warranty for complete chair.

After sale service: - 6 free services during warranty period of three years.
